UCF vs. UCP vs. UCFL: Choosing the Right Pillow Block

Pillow block bearings work as key mounted bearing units in factory machines. These parts include a shell, often cast iron or other strong stuff. They also have an inner bearing, like a ball bearing. This inner part holds turning shafts. Pillow blocks handle side loads and small end loads. They also give line-up for shafts during work. Their build keeps things steady. It cuts shake and grows machine life in many uses.

Makers and builders often make choices when picking pillow block bearings. Usual lines cover UCF, UCP, and UCFL. Each brings clear setup styles, load-hold skills, and setup pluses. Knowing these gaps lets pick of the right line for set machine needs.

Best Pillow Block Bearings: UCF vs. UCP vs. UCFL Series

The UCF, UCP, and UCFL lines stand as common insert ball bearing units with shells. All have ready-put-together, ready-oiled builds. They come with good seals to guard from dirt and keep oil. Self-line skills make up for small shaft off-lines. Set sizes help swap and change.

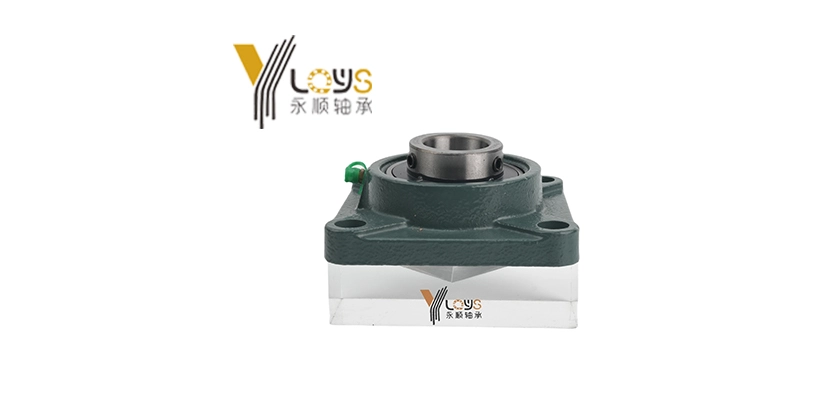

UCF Series: Flanged Cartridge Units

The UCF series Pillow block bearing has a round edge shell with four bolt spots. It is made for safe fix on sides straight to the shaft line. The round outer ring of the inner bearing fits in the shell’s curved side. This lets self-line to deal with shaft bend or off-line.

Features of UCF Series:

• Edge build lets exact spot and safe link.

• Great for uses that need true shaft line-up.

• Dust guard and water guard seal keeps safe in dirty spots.

• Ready-oiled units need no extra prep before setup.

• Works with UC insert bearings; end load held to 20% of rated moving load when set screws are tight.

• Found in sizes from UCF201 to bigger ones, fit for fair to strong side loads.

Usual uses cover farm machines, belt systems, pack gear, and move systems. There, true line-up and safe edge fix boost work.

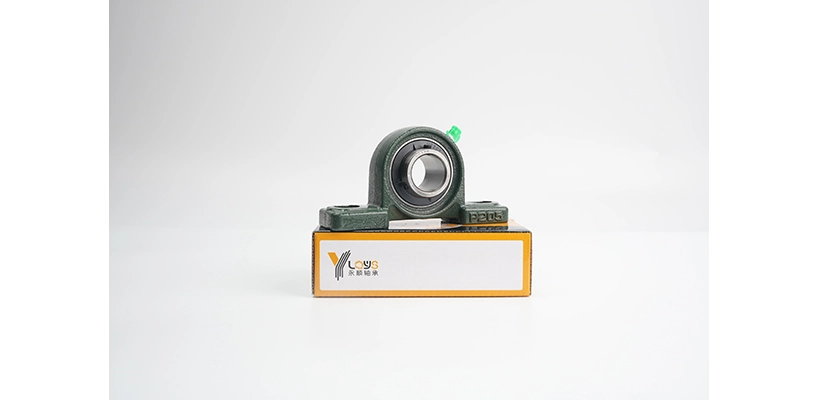

UCP Series: Pillow Block Units

The UCP series Pillow block bearing uses a firm bottom pillow block shell with two bolt spots. This setup fits uses where the bearing fixes side by side to the shaft line on flat sides.

Features of UCP Series:

• Small build saves room in gear plans.

• High turn feel backs uses needing even, quick work.

• Easy setup with two set screws for fast hold and change.

• Seen wide as the most all-round insert ball bearing unit with shell.

• Strong cast iron shell gives long life and hit guard.

• Good seal and self-line parts for sure work.

The UCP line sees use in air heat systems, factory fans, stuff move gear, and usual machine sets. These need wide all-round and easy keep.

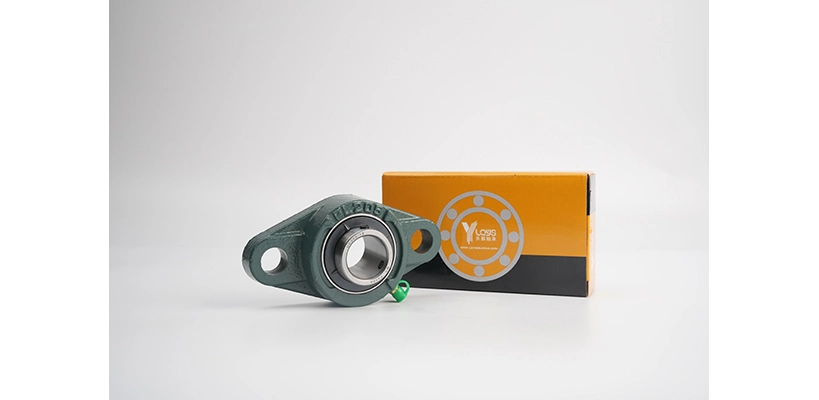

UCFL Series: Flanged Two-Bolt Units

The UCFL series Pillow block bearing mixes an edge with a two-bolt bottom. It gives a mix build that brings better steady in different fix ways. The shell has two bolt spots and takes small room.

Features of UCFL Series:

• Edge and two-bolt setup makes sure firm fix and steady.

• Small build fits up, sloped, or angled setups.

• High turn truth with top seal for hard spots, like high heat or wet states.

• Dust guard and water guard keep grows use life.

• Fits for side loads, light end loads, and mixed loads.

• Easy setup and take-apart.

Uses go over stirrers, mixers, waste water gear, stuff work machines, and cases that need strong work under hard states.

Comparing the Three Series

Main gaps among UCF, UCP, and UCFL lines lead pick:

• Mounting Design — UCF and UCFL add edges for safe, true link; UCP counts on a firm bottom for plain bolt work.

• Precision and Alignment — UCF does well in uses needing tight shaft line-up from its tube-style edge setup.

• Versatility — UCP gives wide fit over usual factory sets with its plain, room-save bottom.

• Stability in Demanding Conditions — UCFL gives top steady by its two-bolt edge build, fit for change ways or heavy work spots.

• Installation Ease — UCP and UCFL let fast, user-kind fix; UCF may need more care to line-up.

• Load and Environmental Suitability — All deal side loads well with seal; UCF holds end loads tight, while UCFL fits mixed loads in hard sets.

Selecting the Perfect Pillow Block Series for Machinery

Pick rests on use-set parts like shaft line needs, fix side way, load kinds, air states, and room limits. For true-focus systems, UCF line gives sure line-up. All-round, room-mind setups like UCP line. Hard spots with angled or steady fix gain from UCFL line.

Checking these points makes sure best bearing work, cut stop time, and grown machine trust.

Frequently Asked Questions (FAQ)

What is the main difference between UCF, UCP, and UCFL pillow block bearings?

UCF features a four-bolt round flange for precise alignment, UCP uses a solid two-bolt base for versatility, and UCFL combines a flange with two bolts for enhanced stability in varied orientations.

Which pillow block series is best for agricultural machinery?

UCF series often suits agricultural applications due to its precise alignment and secure flanged mounting in conveyor and processing equipment.

Are LQYS Bearings pillow block bearings pre-lubricated?

Yes, LQYS Bearings pillow block bearings come pre-lubricated and sealed, ready for immediate installation without additional preparation.

Can these series handle axial loads?

They primarily support radial loads; axial loads are limited (e.g., up to 20% of dynamic rating in UCF), with UCFL better suited for combined loads.

What materials are used in LQYS Bearings pillow block housings?

LQYS Bearings uses robust cast iron or stamped steel housings for durability, impact resistance, and protection in industrial settings.

Partner with a Reliable Manufacturer and Seller

Business seeking high-quality pillow block bearings benefit from partnering with established suppliers offering consistent precision and reliability. LQYS Bearings, as a dedicated manufacturer and seller, produces premium UCF, UCP, UCFL, and other series pillow block bearings using advanced equipment and rigorous quality processes. With a 12,000m² facility, experienced team, and exports to over 30 countries, LQYS Bearings delivers durable solutions for smart manufacturing, new energy vehicles, robotics, agriculture, and more. Contact the team via salesjake@lqysbearing.com for OEM inquiries, bulk orders, or custom requirements. Secure reliable bearing performance for production needs today.
