What Bearings Are Used in Electric Motors? Types, Applications, and Selection Guide

Most electric motors use rolling bearings such as deep groove ball bearings, angular contact ball bearings, cylindrical roller bearings, insulated bearings, or hybrid bearings. The right electric motor bearings depend on motor speed, radial load, axial load, temperature, seal type, internal clearance, noise requirement, and whether the motor faces electrical current risk.

Quick Answer: What Bearings Are Used in Electric Motors?

For standard industrial motors, the most common bearing used in motor assemblies is the deep groove ball bearing. It offers low friction, stable rotation, and practical replacement availability. Motors with higher axial force may require angular contact ball bearings, while heavy-duty or belt-driven motors may need cylindrical roller bearings. VFD motors, high-voltage motors, or motors with repeated electrical erosion may need insulated or hybrid bearings.

Main Electric Motor Bearing Types and When to Use Each

Deep Groove Ball Bearings for Electric Motors

A deep groove ball bearing is often the first option to check for standard motors, fans, pumps, light industrial drives, and small machinery. It can support mainly radial load and limited axial load, while keeping friction and noise relatively low. For regular replacement, buyers should confirm the bearing number, dimensions, seal type, clearance, grease condition, and speed requirement before ordering deep groove ball bearings for electric motors.

Angular Contact Ball Bearings for Motors with Axial Load

Angular contact ball bearings should be considered in case there is an axial load, shaft positioning or increased rigidity to consider. They could be selected for servo motors, spindle motors, precision devices, and motors which have any kind of load direction other than radial. Buyers will need to check on the axial force direction, pairing, preloading, RPM and mounting space.

Cylindrical Roller Bearings for Heavy Duty Electric Motors

In cases where the motor is subject to high radial loads or rigidity requirements, cylindrical roller bearings are appropriate. These should only be considered in large industrial electric motors, heavy duty drives, belt driven equipment, and machines where a typical ball bearing may lack enough radial capability. This will depend on the load, shaft size, housing configuration, temperature and bearing markings.

Insulated and Hybrid Bearings for VFD or High Voltage Motors

Insulated and hybrid bearings are not necessary in all electric motors. These become important if the application includes VFD, shaft currents, electrical pitting, fluting marks, early failures of bearings, or excessive noise. In these cases, replacing the same standard bearing may not solve the root problem.

Match the Bearing to Motor Load, Speed, and Mounting Position

Radial Load vs Axial Load: How It Changes Bearing Choice

Radial load acts across the shaft, while axial load acts along the shaft. Mainly radial load often points to deep groove ball bearings or cylindrical roller bearings. Higher axial load may require angular contact ball bearings. Vertical motors, belt tension, fan systems, pumps, and gear-driven equipment should be reviewed carefully before selecting a replacement bearing.

Speed, Heat, and Internal Clearance

High-speed motor bearing selection should not be decided by size alone. RPM, heat, grease behavior, seal drag, fit, and internal clearance can change bearing performance after installation. If a motor runs hot after replacement, the cause may be tight fit, unsuitable clearance, overgreasing, misalignment, or a bearing type that does not match the real operating condition. For high-RPM cases, buyers can also review high-speed electric motor bearing selection.

Sealed, Shielded, Open, and C3: How to Read Motor Bearing Specifications

ZZ vs 2RS vs Open Bearings for Electric Motors

Open bearings may suit clean systems with planned relubrication. ZZ or Z shielded bearings can reduce contamination while keeping lower seal drag. 2RS sealed bearings provide better dust and moisture protection, but seal friction and speed condition should be checked. A buyer replacing 6205 ZZ with 6205 2RS should not assume the two are automatically interchangeable in every motor.

Normal Clearance vs C3 Clearance

C3 clearance does not mean a bearing is simply “better.” It means the bearing has greater internal clearance. Some electric motor bearings use C3 because heat, tight fit, or operating speed reduces clearance during service. If the removed bearing is marked C3, replacing it with normal clearance may increase heat or noise risk.

Bearings for Small Electric Motors vs Industrial Motors

Small Motors: Low Noise, Low Friction, and Compact Size

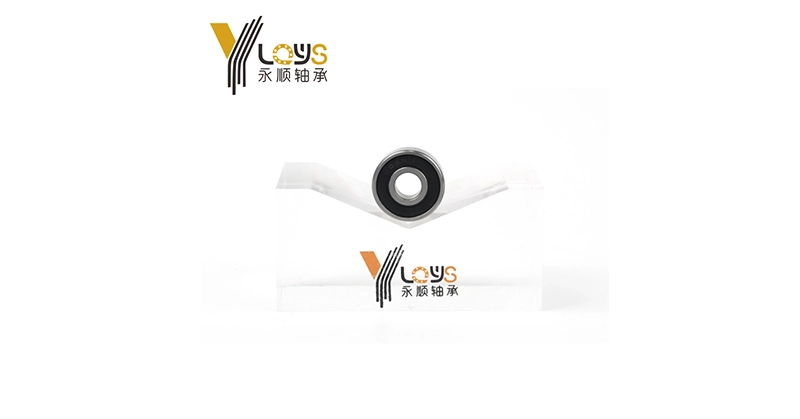

Bearings for small electric motors are usually selected for compact size, low starting torque, stable noise, smooth rotation, and consistent batch quality. Seal friction, grease type, precision level, and vibration matter more than heavy-load capacity. Compact designs may require miniature bearings for small electric motors.

Industrial Motors: Load, Heat, Duty Cycle, and Replacement Risk

Industrial motor buyers often care about downtime, repeated failure, overheating, and replacement accuracy. A practical RFQ should include bearing code, bore, outside diameter, width, seal type, clearance, RPM, load direction, mounting position, temperature, duty cycle, quantity, and failure photos.

Common Electric Motor Bearing Problems and How the Right Bearing Prevents Them

Overheating and Premature Failure

Motor bearing overheating may come from excessive load, wrong clearance, too much grease, poor lubrication, seal friction, tight fit, contamination, or misalignment. The solution is not always to order the same bearing again. The working condition should be checked first.

Noise and Vibration

Noise and vibration may indicate contamination, poor fit, raceway damage, incorrect clearance, lubricant failure, or electrical current damage. If the bearing remains noisy after correct lubrication and installation, replacement or specification review may be needed.

Electrical Current Damage in VFD Motors

VFD motors can expose bearings to shaft current risk. Warning signs may include fluting marks, pitting, rising vibration, and repeated premature failure. In these cases, insulated or hybrid bearing options should be evaluated according to motor design and operating conditions.

How to Choose and Buy Replacement Electric Motor Bearings

Technical Information Buyers Should Confirm Before RFQ

Before purchase, confirm the old bearing marking, dimensions, seal or shield suffix, clearance grade, RPM, radial load, axial load, mounting position, temperature, duty cycle, noise requirement, VFD use, quantity, drawings, samples, and photos. This information reduces wrong-suffix orders and repeated testing.

How to Choose an Electric Motor Bearing Supplier

A suitable supplier should help buyers check model matching, suffix differences, clearance, seal type, application condition, and batch purchasing needs. Shanghai Yongheshun Import and Export Co., Ltd. operates LQYS Bearings with bearing categories covering ball bearing, angular contact ball bearing, cylindrical roller bearing, miniature bearings, and other industrial bearing types. For replacement projects, buyers can contact LQYS for replacement motor bearing inquiries with the bearing model, dimensions, application, target quantity, and failure details.

Conclusion

Electric motor bearing selection depends on the motor’s load, speed, heat, seal environment, clearance requirement, mounting condition, and failure history. Deep groove ball bearings fit many standard motors, angular contact ball bearings support axial-load conditions, cylindrical roller bearings suit heavier radial-load applications, and insulated or hybrid bearings may be needed where electrical current damage is present.

For a more accurate purchasing decision, buyers should provide the bearing code, size, seal type, clearance, RPM, working temperature, load direction, application, quantity, drawing, sample, or failure photos before requesting a quotation.

FAQs

What type of bearing is most commonly used in electric motors?

Deep groove ball bearings are commonly used in standard electric motors because they support smooth rotation, low friction, mainly radial load, and limited axial load.

Are ball bearings good for electric motors?

Yes. Ball bearings are suitable for many electric motors, especially fans, pumps, small motors, light industrial drives, and general motor assemblies. Final selection still depends on speed, load, clearance, seal type, and temperature.

Should electric motor bearings be sealed or shielded?

It depends on the working environment. Shielded bearings may suit lower-friction motor applications with dust protection needs, while sealed bearings may be better for dust, moisture, or lower-maintenance conditions.

Do electric motor bearings need C3 clearance?

Some motors need C3 clearance because of heat, speed, or tight fitting conditions. Buyers should check the old bearing marking and motor requirement before changing from C3 to normal clearance.

When should a motor use insulated or hybrid bearings?

A motor may need insulated or hybrid bearings when VFD operation, high voltage, shaft current, electrical pitting, fluting marks, or repeated unexplained bearing failure is present.
